Pipe Bursting Under Salem's Landmarked Streetscapes
Salem is the highest-complexity sewer market on this list. Half the housing stock was built before 1939, and the city holds one of the greatest concentrations of pre-1900 domestic structures in the country — the Samuel McIntire Historic District alone contains 407 buildings. Under those landmarked Federal- and Georgian-era streetscapes run century-old vitrified clay laterals, and trenchless methods are often mandatory simply to preserve the historic sidewalks and streets above them. Pipe bursting replaces the pipe without touching the streetscape: the old clay is fractured underground and new HDPE follows, while the landmarked sidewalk, the granite curb, and the brick walk stay exactly as they were.
The failure modes here compound. Porous fieldstone and rubble-masonry foundations — many with weeping-tile or footer drains tied into older combined sewers — sit over high coastal water tables, and FEMA maps tidal-flood zones along the North River and high-risk VE zones at the Forest River, the Willows, and Collins Cove. Groundwater infiltration and root intrusion into cracked clay joints are the dominant failures, especially near the rivers and the waterfront. A fused, joint-free bursting replacement seals the line against the infiltration that the old joints were admitting every tide cycle and every spring melt.
Access is the third constraint. Narrow historic-district streets, dense urban blocks, and single-family homes carved into condos make equipment staging slow — there is no room to park an excavator and a soil pile on Derby or Essex Street. A compact bursting rig working from two pits fits where open excavation cannot, and the short surface footprint keeps the work from becoming a neighborhood event. Winter nor'easters and sea-level rise periodically flood low-lying basements here, so surge-related backup calls follow the same streets as the oldest pipes — one more reason the watertight replacement matters as much as the method that installs it.
Full Pipe Replacement That Never Touches the Streetscape
Salem is the highest-complexity sewer market on this list, and pipe bursting is specified here for a reason no other method can match: the replacement happens entirely below the surface that the city exists to preserve. Under the landmarked Federal- and Georgian-era streetscapes run century-old vitrified clay laterals, and trenchless methods are often mandatory simply to protect the historic sidewalks and streets above them. A hydraulic head, drawn through the old lateral by a surface rig, fractures the failed clay outward underground while a new high-density polyethylene (HDPE) line fused to the head's trailing end follows through the same bore in one continuous pull. The landmarked sidewalk, the granite curb, and the brick walk stay exactly as they were.
The HDPE line is built for Salem's compounded failures. It is heat-fused into a jointless pipe, so the groundwater infiltration that porous fieldstone foundations and high coastal water tables drive into cracked clay joints — every tide cycle and every spring melt — has no joints left to enter. The material flexes with freeze-thaw ground movement instead of cracking, and where FEMA-mapped tidal-flood zones along the North River and the VE zones at the Forest River, the Willows, and Collins Cove push surge pressure against low lines, the watertight replacement removes infiltration as a failure mode. Roots, collapsed sections, and offset joints are eliminated together in the single pull.
Bursting is the right call over lining in Salem's two standard cases: the century-old lateral too degraded to host a liner, and the line where infiltration — not just blockage — is the dominant complaint and every joint must be sealed at once. Lining needs an intact host and preserves the old diameter; bursting replaces the pipe to modern standards and can upsize where the building's loads demand it. On streets where open excavation cannot be staged at all — narrow historic-district lanes, dense urban blocks — the two-pit footprint is not just preferable; it is the only practical way the work gets done.
Landmarked Streets, Porous Foundations, and Tidal Flood Zones
Salem is the highest-complexity sewer market on this list. Half the housing stock was built before 1939, and the city holds one of the greatest concentrations of pre-1900 domestic structures in the country — the Samuel McIntire Historic District alone contains 407 buildings. Under those landmarked Federal- and Georgian-era streetscapes run century-old vitrified clay laterals, and trenchless methods are often mandatory simply to preserve the historic sidewalks and streets above them. Pipe bursting replaces the pipe without touching the streetscape: the old clay is fractured underground and new HDPE follows, while the landmarked sidewalk, the granite curb, and the brick walk stay exactly as they were.
The failure modes here compound. Porous fieldstone and rubble-masonry foundations — many with weeping-tile or footer drains tied into older combined sewers — sit over high coastal water tables, and FEMA maps tidal-flood zones along the North River and high-risk VE zones at the Forest River, the Willows, and Collins Cove. Groundwater infiltration and root intrusion into cracked clay joints are the dominant failures, especially near the rivers and the waterfront. A fused, joint-free bursting replacement seals the line against the infiltration that the old joints were admitting every tide cycle and every spring melt.
Access is the third constraint. Narrow historic-district streets, dense urban blocks, and single-family homes carved into condos make equipment staging slow — there is no room to park an excavator and a soil pile on Derby or Essex Street. A compact bursting rig working from two pits fits where open excavation cannot, and the short surface footprint keeps the work from becoming a neighborhood event. Winter nor'easters and sea-level rise periodically flood low-lying basements here, so surge-related backup calls follow the same streets as the oldest pipes — one more reason the watertight replacement matters as much as the method that installs it.
Bursting Under a Historic District
Camera inspection with infiltration survey
The lateral is televised to map collapses, offsets, root entries, and infiltration points. On historic-district properties the survey also confirms the pipe's route relative to the protected streetscape so both pits avoid it.
Two pits, no streetscape work
A launch pit at the building and a receiving pit at the main are opened. The historic sidewalk, granite curb, and brick walk between them are never lifted or cut.

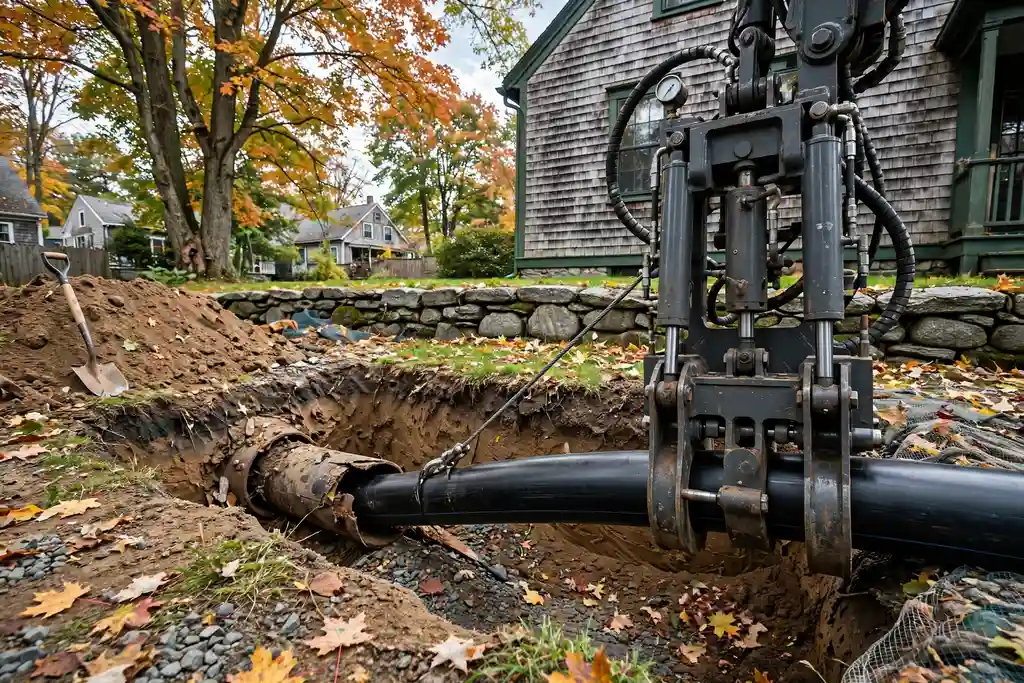

Bursting beneath the historic streetscape
The hydraulic head fractures the old clay along the existing route while the fused HDPE follows in one continuous length. The work happens entirely underground; the surface above shows only the two pit areas.
Tie-in and invisible restore
The new line is connected at both ends and flow-tested; where surge exposure was documented, backwater protection is discussed. The pits are backfilled and finished to match, and the streetscape is untouched.
