Trenchless Sewer Repair in Peabody, MA

What Trenchless Sewer Repair Is and When It Fits

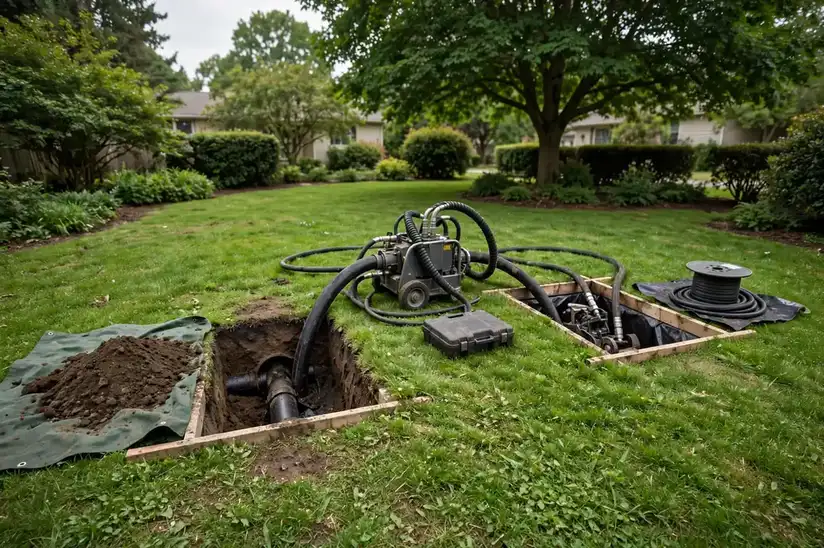

Trenchless sewer repair fixes a damaged underground pipe without opening a continuous trench along its length. Instead of excavating the entire line, technicians work through one or two small access pits, using the old pipe's path as a guide to install a new pipe within it or in its place. The result is a fully renewed line with the surface above, your lawn, driveway, walkways, and gardens, left essentially undisturbed.

Trenchless methods fit a wide range of common failures. Cured-in-place pipe (CIPP) lining is the answer for pipes that are cracked, leaking at joints, invaded by roots, or corroded, but still hold their basic shape: a resin-saturated liner is installed inside the old pipe and hardened into a new structural pipe. Pipe bursting handles the tougher cases: a bursting head is pulled through the old line, fracturing it outward while drawing a new HDPE pipe into place behind it, which works even where the old pipe has partially collapsed. Trenchless is not right for every situation, a line with severe bellies that hold standing water or with extreme offset joints may still need open excavation, and the camera inspection determines candidacy honestly. When your line qualifies, the difference in disruption compared with a conventional sewer line replacement is dramatic.

Our Step-by-Step Trenchless Repair Process

A successful trenchless repair is decided in the preparation: the pipe must be clean, measured, and fully understood before the liner or bursting head ever goes in. Our process follows a strict sequence so the finished pipe performs as designed. If you suspect your line is a candidate, call (833) 713-2101 and we will start with the inspection that answers the question definitively.

1. Camera inspection and cleaning. We inspect the full lateral to confirm trenchless candidacy, then clean the pipe thoroughly with sewer line cleaning hydro jetting so the liner or bursting head meets bare pipe walls, not debris. 2. Measurement and liner preparation. The line is measured precisely, and the liner is cut to length and saturated with a two-part epoxy resin mixed to specification. 3. Access pit excavation. Small pits are dug at the entry and exit points, far less disruptive than a full trench. 4. Liner installation or pipe bursting. For lining, the resin-saturated liner is inverted into the pipe with air or water pressure, pressing it tightly against the old pipe walls; for bursting, the bursting head fractures the old pipe while pulling the new HDPE pipe through. 5. Curing. The liner is hardened in place using hot water, steam, or UV light according to the system design, forming a seamless, jointless new pipe. 6. Branch reinstatement. A robotic cutter reopens any branch connections that the liner covered, restoring full service to every fixture. 7. Final camera verification. The completed line is inspected on camera to confirm a smooth, continuous interior, correct reinstatements, and full flow, and the footage is reviewed with you.

Trenchless Equipment and Materials We Use

The heart of a lining job is the liner and resin system. We use felt or fiberglass liners impregnated with epoxy resin, a combination chosen for structural strength once cured: the finished pipe-within-a-pipe is a standalone structural pipe rated to carry the load, not merely a coating. Inversion drums or air-pressure systems install the liner smoothly without wrinkles or folds, and curing is performed with calibrated hot-water, steam, or UV equipment that brings the resin through its full cure cycle. Robotic reinstatement cutters, guided by camera, precisely reopen branch connections after the liner hardens.

For pipe bursting, the key components are the bursting head, sized to fracture the old pipe while expanding the cavity just enough for the new pipe, and the hydraulic pulling rig that draws the assembly through at a controlled rate. The replacement pipe is high-density polyethylene (HDPE), fused into continuous lengths with no joints, which makes it inherently resistant to root intrusion and corrosion. Across both methods, inspection cameras verify every stage, from the initial candidacy survey to the final acceptance footage, and locating equipment marks the line's position so access pits land exactly where they should. The same quality standards apply whether the job is lining, bursting, or a conventional installation, and you can compare approaches on our sewer line installation page.

Safety Precautions in Trenchless Sewer Repair

Trenchless work trades a long open trench for specialized equipment and chemistry, and the safety plan follows that trade. Resins are handled according to manufacturer safety data sheets: technicians wear chemical-resistant gloves and eye protection during mixing and wet-out, the work area is ventilated, and resins are kept away from ignition sources and stored properly. During curing, temperatures and pressures are monitored continuously so the liner cures correctly without overheating, and no one enters confined access pits without proper confined-space procedures, including atmospheric testing and an attendant at the surface.

The mechanical side gets equal attention. Pipe bursting rigs operate under high hydraulic pulling forces, so the pulling assembly is anchored correctly, exclusion zones keep everyone clear of tensioned components, and communication between the entry and exit pits is maintained throughout the pull. Even though excavation is minimal, underground utilities are still marked through Dig Safe before any pit is dug, because a small pit can still strike a shallow line. Access pits are barricaded and covered whenever the crew steps away, and the site is left secured each day. Trenchless may be less disruptive, but it is never treated as less serious.

Trenchless Sewer Repair in Peabody and the North Shore

Trenchless methods and Peabody are a natural match, because the local conditions are exactly what trenchless was designed to work around. The city's mature landscaping is often the first thing homeowners want to protect: decades-old shade trees, established gardens, and expensive hardscaping that a conventional trench would destroy. Trenchless repair threads the new pipe through the old path with only small pits, leaving all of that intact. It is equally valuable under driveways, patios, and walkways, which are costly to demolish and rebuild, and a frequent concern on Peabody's fully developed residential lots.

The local geology adds another argument. Glacial till studded with cobbles, and ledge that appears without warning, make open trenching slow and unpredictable here; working through small pits and the existing pipe path sidesteps much of that uncertainty. Freeze-thaw durability matters too: the jointless HDPE pipe installed by bursting, and the seamless cured liner, have no joints for frost-heaved soil to work open, addressing one of the root causes of failure in older clay laterals. Municipal inspection requirements still apply to trenchless work, and we coordinate permits and inspections as part of the project. To find out whether your line qualifies, including options like trenchless sewer repair in nearby Lynn for comparison, call (833) 713-2101 for a camera inspection and an honest candidacy assessment.
