Sewer Leak Detection in Essex, MA

Tidal Groundwater Makes Dye Tests Unreliable in Essex

Leak detection in Essex is practiced differently than in any inland town, because the Great Marsh vetoes one of the three standard methods. More than 20,000 acres of salt marsh surround the town, and low areas sit on very poorly drained tidal-marsh muck with a chronically high water table. Here dye testing is close to useless: tracer dilutes into saturated muck within feet and can ride tidal groundwater anywhere. The default order becomes smoke, then acoustic, then camera. Smoke leads because vapor travels inside the pipe and escapes only at genuine breaches — one charge maps every open joint along a 60-to-100-year-old clay lateral in a single pass.

The second challenge is the tide. Nor'easters drive storm surge up the Essex River that can back-flood laterals from the receiving end, so a backup after a storm might be the tide, not the pipe. The visit separates the two by timing: smoke testing in a low-tide, dry-weather window shows the pipe's true condition, while a camera pass during or just after a surge shows how far tidal water pushes into the line. Scheduling around the tide chart is standard practice — and the distinction it enables is what justifies a backwater valve on low-lying streets as legitimate protection.

The third factor is the town's historic fabric. Pre-1940 homes — the predominant stock — sit on stone and rubble foundations with clay tile laterals 60 to 100-plus years old. Stone foundations demand trenchless-first approaches, and narrow Main Street frontage, laid out by 1651, leaves little room for equipment — making non-dig detection the default twice over. In a stone-basement antique with an odor complaint, a smoke test traces the smell to a failed clay joint, a cracked retrofit connection, or marsh moisture wicking through rubble: three problems, three fixes, one test. Open-trench work near the marsh must respect wetland jurisdiction — the final argument for a survey precise enough to keep the repair trenchless.

How Sewer Leak Detection Works on an Essex Property

Sewer leak detection in Essex is practiced differently than in any inland town, because the ground itself vetoes one of the three standard methods. The visit begins with symptoms — odors, soggy ground, foundation dampness, slow drains, and, distinctively here, backups that arrive with storms rather than usage. But where a technician elsewhere might reach for dye tracer first, in Essex the default order is smoke, then acoustic, then camera, with dye held in reserve. Smoke leads for a physical reason: vapor travels inside the pipe and escapes only at genuine breaches, unaffected by the saturated tidal-marsh muck outside. One charge maps every open clay joint along a 60-to-100-year-old lateral in a single pass — and where original clay laterals are the modal case, that whole-line picture is usually the whole diagnosis.

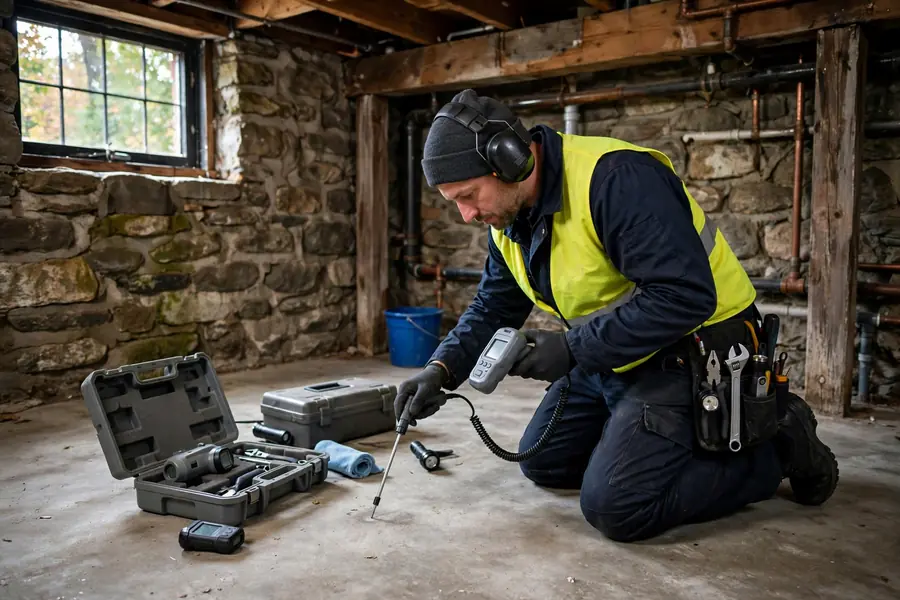

Acoustic listening plays the supporting role, scheduled with intent. Waterlogged muck dampens the leak noise that ground microphones listen for, so acoustic surveys are timed for drier windows and always paired with camera confirmation — a quiet stretch of pipe is verified visually, never assumed sound. Where the method earns its keep is on older cast iron: the salt-laden air and brackish groundwater of the Essex River corridor corrode cast iron from the outside in, and acoustic listening tuned for corrosion pinholes distinguishes the pinhole signature from a separated clay joint. The two need different repairs — a pinhole may answer to spot repair or sectional lining, a separated joint to replacement — and only a characterized survey tells them apart.

The third element is tidal separation — distinguishing a pipe leak from tidal intrusion. Storm surge up the Essex River can back-flood laterals from the receiving end, so a soggy spot after a nor'easter might be the tide, not the pipe. The visit separates them by timing: smoke testing in a low-tide, dry-weather window shows the pipe's true condition, while a camera pass during or just after a surge shows how far tidal water pushes into the line. The deliverable is a mapped report stating both findings — the pipe's structural condition and its tidal exposure — so the homeowner knows whether they need a pipe repair, a backwater valve, or both.

Marsh, Tide, and Stone: Essex's Detection Challenges

The first challenge is the Great Marsh itself — more than 20,000 acres of salt marsh, the largest in New England, with the town sitting on the Essex River inside it. Low areas rest on very poorly drained tidal-marsh muck with a chronically high water table, making dye testing close to useless: tracer dye dilutes into saturated muck within feet and can ride tidal groundwater anywhere, so a negative dye test proves nothing and a positive one may trace the marsh rather than the leak. Infiltration and root intrusion dominate — groundwater pressing into every cracked clay joint, roots following the moisture — so detection must find infiltration paths, not just structural breaks, and the reliable methods in saturated ground are smoke and camera, not dye.

The second challenge is the tide. Nor'easters drive storm surge up the Essex River, tidal flooding can surcharge laterals from the receiving end, and marsh-adjacent streets face nuisance flooding routinely. For detection, the tide is both confounder and diagnostic tool: a test run at high tide or during a surge shows tidal water in the line masquerading as pipe failure, while the same test at low tide shows the pipe's true condition. Scheduling around the tide chart is therefore standard practice — and the distinction it enables, between tidal intrusion and pipe failure, is what justifies a backwater valve on low-lying streets near the river as legitimate protection rather than an upsell.

The third challenge is the town's historic fabric. Pre-1940 homes — the predominant stock — sit on stone and rubble foundations with clay tile laterals 60 to 100-plus years old; landmarks like the Coffin House (c. 1678) show how old 'old' gets here. Stone foundations demand trenchless-first approaches, and narrow Main Street frontage, laid out by 1651, leaves little room for equipment — making non-dig detection the default twice over. In a stone-basement antique with an odor complaint, a smoke test traces the smell to a failed clay joint, a cracked retrofit connection, or marsh moisture wicking through rubble: three problems, three fixes, one test. Open-trench work near the marsh must respect wetland jurisdiction — the final argument for a survey precise enough to keep the repair trenchless.
