Sewer Line Installation in North Reading, MA

Acre Lots and Brook Floodplains: Installing Sewer Lines in North Reading

North Reading's lots are the story: most are an acre or more, which means new sewer lines routinely run 100 feet or longer from the building to the municipal main. Over that distance, pitch is everything. A grade that is slightly off at the foundation exit compounds into a real problem at the street, so the trench is instrument-surveyed and the pipe's grade is verified nonstop along the full run. Long laterals also cross more of the lot's unknowns: mature trees and their root zones, old field drains, and the wetland buffers that come with the town's water. The alignment is walked and planned before digging, because a straight line across a 100-foot lot is rarely the smart line.

The southern half of town adds the flood corridor. Martins Brook runs through a FEMA-documented floodway, feeding the Skug River and the Ipswich River along the town's southern edge, and laterals in that corridor face seasonally high water tables and documented floodplain dynamics. A new line there is installed with dewatering, stone bedding that holds in saturated ground, and watertight joints. Groundwater that infiltrated an old clay lateral will test a new line's gaskets just as hard. Because the town pays close attention to this watershed, excavation near the brook has to account for permit-sensitive wetlands; keeping the alignment out of buffer zones, or using a trenchless crossing where the route must pass near them, is planned from the start rather than negotiated mid-job.

The housing stock splits the work into two kinds. In the postwar neighborhoods of capes, ranches, and colonials, and on the newer custom homes in the tree-lined developments, new installations are usually rebuilds, additions, or ADUs, where the old clay or cast-iron lateral is abandoned and a fresh line is laid on an optimized alignment. On the older properties with 1700s and Federal-era survivors, the building exit needs hand care at old masonry, and the run is shorter but no less root-dense. Either way, the glacial-outwash and till soils of the Ipswich basin get the same treatment: trench cut through the hardpan, pipe bedded on stone, pitch held true from foundation to main.

Holding Grade Over a Hundred Feet in North Reading

The installation is a surveying exercise first. The trench line is instrument-surveyed from the foundation exit to the municipal main, and the design grade is established for the entire hundred-foot-plus run as one continuous slope. The alignment is walked for mature trees, old field drains, and wetland edges, and adjusted so the long run avoids root zones and stays clear of buffer lines. On the postwar capes and ranches, the foundation exit is located and measured; on the older properties with 1700s survivors, the exit through old masonry is exposed by hand and the grade is set from that exact point.

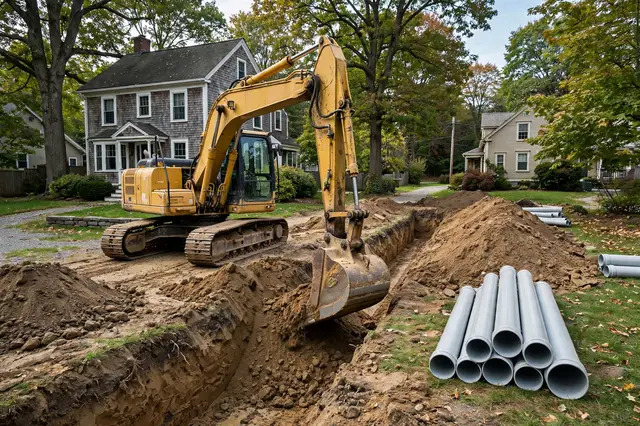

Trenching follows the survey line. The excavation passes through the glacial-outwash and till soils to a consistent depth beneath the design grade, cutting the hardpan cleanly so the pipe never rides up over it. Crushed-stone bedding is then shaped to the surveyed gradient for the entire run, and each pipe length goes in with its slope verified before the next joint is made, because across a hundred feet a fraction of a degree grows into a visible belly. All joints receive watertight gaskets. Through the Martins Brook and Ipswich River corridor, pumps keep the trench dry while pipe is laid and the bedding aggregate is chosen for saturated soil.

The street connection finishes the long run. The tap at the municipal main is installed and sealed against water entry, with the seal detailed carefully in the flood-corridor soils where groundwater sits high. Where the route had to pass near permit-sensitive wetlands, the crossing is built exactly as permitted, by trenchless means or outside the buffer, with no improvisation mid-job. A camera pass then travels the finished lateral end to end, confirming one unbroken true grade from foundation to street, before the long trench across the acre lot is backfilled in compacted layers and restored.

North Reading: Big Lots, Brook Water, Old Roots

North Reading transformed after World War II from agricultural land into a Boston-metro suburb, and the lots tell that story: most are at least an acre, in tree-lined neighborhoods of postwar capes and ranches, colonials, and newer custom homes, with some local industry in the southwest and commercial along Main Street, Route 28. First settled in 1651, the town keeps a smattering of 1700s homes and Federal-era landmarks like the Rev. Daniel Putnam House. For installers, the acre lots are the defining fact, because every lateral is a long one and grade control is the whole job.

The water story is the Ipswich River watershed. Martins Brook originates at the Martins Pond outlet in North Reading, flows southwest through Wilmington and back into North Reading before joining the Ipswich River along the town's southern limits, with Martins Pond's 92 acres feeding the system via the Skug River. The FEMA floodplain along Martins Brook is a principal town environmental concern, with a documented floodway plan, and the field-stone culvert at Route 62 in Wilmington is a known constraining feature in major floods. Laterals in the southern half of town live with seasonally high water tables and real floodplain dynamics.

The soils are glacial outwash and till typical of the Ipswich basin, with moderate water tables near ponds and wetlands and flood-prone basements near the brook corridor. Weather is the classic inland New England pattern: hard freeze-thaw cycles, spring melt feeding the brook and river system, heavy summer downpours, and nor'easters. Between the hundred-foot runs, the brook floodplain, and the mature tree cover, a North Reading installation is planned on paper long before it is dug in the ground.
